Regulatory requirements and good practice determine that monitoring of your drug storage environment is critical. Many vaccines and drugs require storage between 2°C and 8C (35.6°F to 46.4°F)

AKCP provides a solution for monitoring of temperature sensitive drugs and vaccines during transport and storage. 2x NIST traceable, calibrated temperature sensors are compared for accuracy once a second. Alerts are sent if the sensor is out of calibration.

NIST3 sensors feature 3x temperature sensors working with primary pair with calibration checks, providing failover should the pair be out of calibration.

Temperature Monitoring for Pharmaceutical Storage

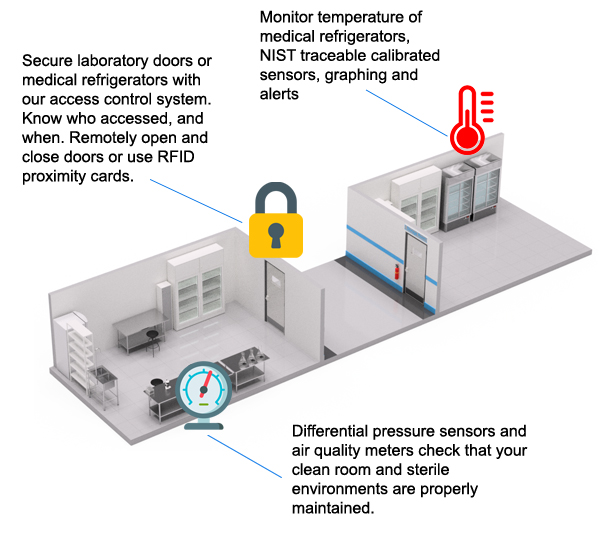

Pharmaceutical and Laboratory Monitoring

Glycol Temperature Sensor for Medical Refrigerators

It is an industry standard best practice when monitoring the temperature inside medical refrigerators to place the sensor suspended in a jar of Glycol. This simulates the acual temperature of the pharmaceutical liquid and avoids false alarms caused by warm air entering the refrigerator, or fluctuations during the compressor cycles of the refrigerator.

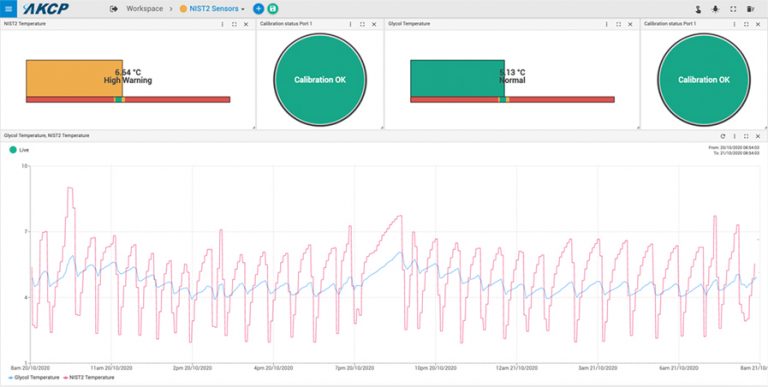

AKCP NIST2 and NIST3 wireless sensors are available with a Glycol Jar attachment for use in laboratories, medical refrigerators and the monitoring of vaccines. The graph below shows a comparison of a sensor exposed to the air temperatures inside the refrigerator (red) and the temperature of the sensor suspended in Glycol (blue). The dampending response is clearly seen, giving a more accurate measure of the temperature of the pharmaceuticals.
